In this guide we will create a Kubernetes cluster using QEMU.

​
Video Walkthrough

To see a live demo of this writeup on Linux, see the video below:

​
Requirements

  • QEMU
  • a kernel with
    • KVM enabled (/dev/kvm must exist)
    • CONFIG_NET_SCH_NETEM enabled
    • CONFIG_NET_SCH_INGRESS enabled
  • at least CAP_SYS_ADMIN and CAP_NET_ADMIN capabilities
  • bridge, static and firewall CNI plugins from the standard CNI plugins, and tc-redirect-tap CNI plugin from the awslabs tc-redirect-tap installed to /opt/cni/bin (installed automatically by talosctl)
  • iptables
  • /var/run/netns directory should exist

​
Installation

​
How to get QEMU

Install QEMU with your operating system package manager.
For example, on Ubuntu for x86:
apt install qemu-system-x86 qemu-kvm

​
Install talosctl

You can download talosctl on MacOS and Linux via:
brew install siderolabs/tap/talosctl
For manual installation and other platforms please see the talosctl installation guide.

​
Install Talos kernel and initramfs

QEMU provisioner depends on Talos kernel (vmlinuz) and initramfs (initramfs.xz). These files can be downloaded from the Talos release:
mkdir -p _out/
curl https://github.com/siderolabs/talos/releases/download/<version>/vmlinuz-<arch> -L -o _out/vmlinuz-<arch>
curl https://github.com/siderolabs/talos/releases/download/<version>/initramfs-<arch>.xz -L -o _out/initramfs-<arch>.xz
For example version $ on amd64 platform:

​
Create the Cluster

For the first time, create root state directory as your user so that you can inspect the logs as non-root user:
mkdir -p ~/.talos/clusters
Create the cluster:
sudo --preserve-env=HOME talosctl cluster create --provisioner=qemu
On Linux, before the first cluster is created, talosctl will download the CNI bundle for the VM provisioning and install it to ~/.talos/cni directory. Once the above finishes successfully, your talosconfig (~/.talos/config) will be configured to point to the new cluster, and kubeconfig will be downloaded and merged into default kubectl config location (~/.kube/config). Cluster provisioning process can be optimized with registry pull-through caches.

​
Using the Cluster

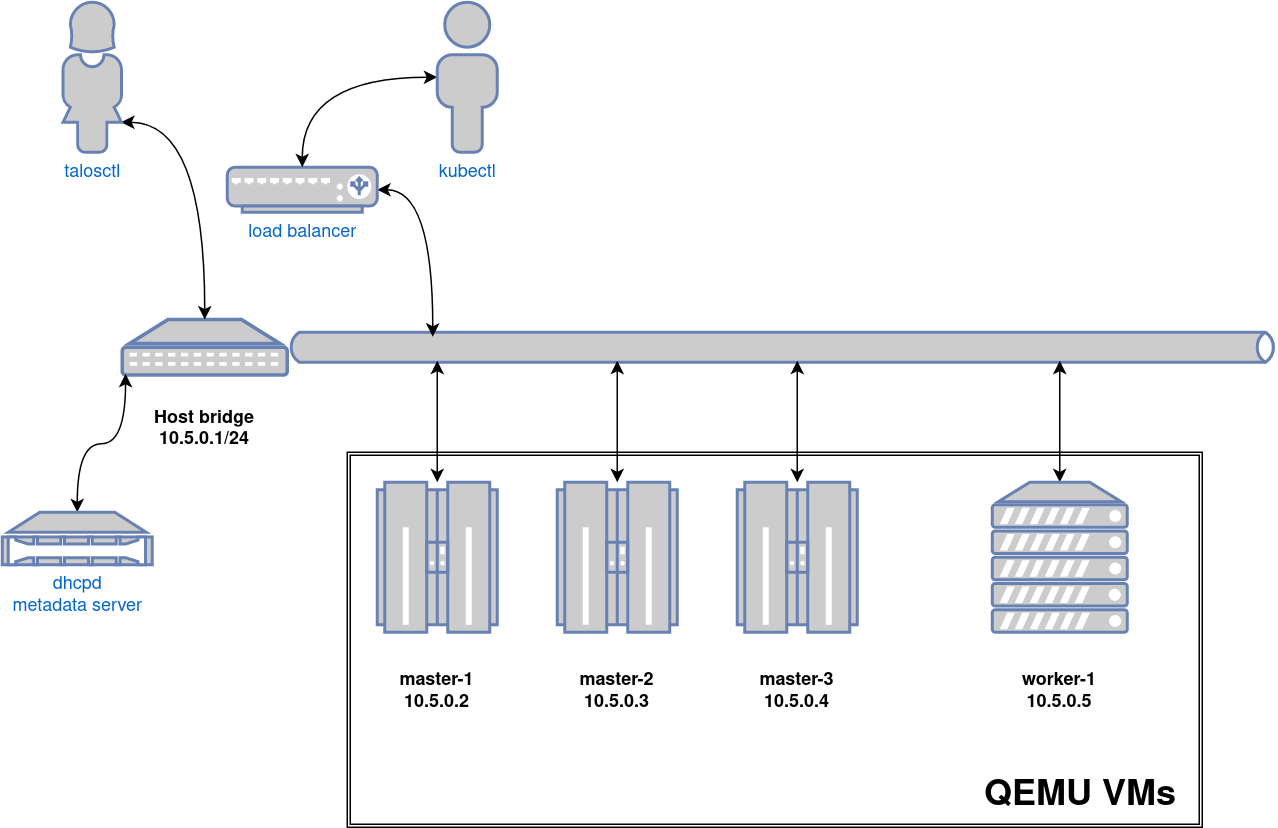

Once the cluster is available, you can make use of talosctl and kubectl to interact with the cluster. For example, to view current running containers, run talosctl -n 10.5.0.2 containers for a list of containers in the system namespace, or talosctl -n 10.5.0.2 containers -k for the k8s.io namespace. To view the logs of a container, use talosctl -n 10.5.0.2 logs <container> or talosctl -n 10.5.0.2 logs -k <container>. A bridge interface will be created, and assigned the default IP 10.5.0.1. Each node will be directly accessible on the subnet specified at cluster creation time. A loadbalancer runs on 10.5.0.1 by default, which handles loadbalancing for the Kubernetes APIs. You can see a summary of the cluster state by running:
$ talosctl cluster show --provisioner qemu
PROVISIONER       qemu
NAME              talos-default
NETWORK NAME      talos-default
NETWORK CIDR      10.5.0.0/24
NETWORK GATEWAY   10.5.0.1
NETWORK MTU       1500

NODES:

NAME                           TYPE           IP         CPU    RAM      DISK
talos-default-controlplane-1   ControlPlane   10.5.0.2   1.00   1.6 GB   4.3 GB
talos-default-controlplane-2   ControlPlane   10.5.0.3   1.00   1.6 GB   4.3 GB
talos-default-controlplane-3   ControlPlane   10.5.0.4   1.00   1.6 GB   4.3 GB
talos-default-worker-1         Worker         10.5.0.5   1.00   1.6 GB   4.3 GB

​
Cleaning Up

To cleanup, run:
sudo --preserve-env=HOME talosctl cluster destroy --provisioner qemu
Note: In that case that the host machine is rebooted before destroying the cluster, you may need to manually remove ~/.talos/clusters/talos-default.

​
Manual Clean Up

The talosctl cluster destroy command depends heavily on the clusters state directory. It contains all related information of the cluster. The PIDs and network associated with the cluster nodes. If you happened to have deleted the state folder by mistake or you would like to cleanup the environment, here are the steps how to do it manually:

​
Remove VM Launchers

Find the process of talosctl qemu-launch:
ps -elf | grep 'talosctl qemu-launch'
To remove the VMs manually, execute:
sudo kill -s SIGTERM <PID>
Example output, where VMs are running with PIDs 157615 and 157617
ps -elf | grep '[t]alosctl qemu-launch'
0 S root      157615    2835  0  80   0 - 184934 -     07:53 ?        00:00:00 talosctl qemu-launch
0 S root      157617    2835  0  80   0 - 185062 -     07:53 ?        00:00:00 talosctl qemu-launch
sudo kill -s SIGTERM 157615
sudo kill -s SIGTERM 157617

​
Stopping VMs

Find the process of qemu-system:
ps -elf | grep 'qemu-system'
To stop the VMs manually, execute:
sudo kill -s SIGTERM <PID>
Example output, where VMs are running with PIDs 158065 and 158216
ps -elf | grep qemu-system
2 S root     1061663 1061168 26  80   0 - 1786238 -    14:05 ?        01:53:56 qemu-system-x86_64 -m 2048 -drive format=raw,if=virtio,file=/home/username/.talos/clusters/talos-default/bootstrap-master.disk -smp cpus=2 -cpu max -nographic -netdev tap,id=net0,ifname=tap0,script=no,downscript=no -device virtio-net-pci,netdev=net0,mac=1e:86:c6:b4:7c:c4 -device virtio-rng-pci -no-reboot -boot order=cn,reboot-timeout=5000 -smbios type=1,uuid=7ec0a73c-826e-4eeb-afd1-39ff9f9160ca -machine q35,accel=kvm
2 S root     1061663 1061170 67  80   0 - 621014 -     21:23 ?        00:00:07 qemu-system-x86_64 -m 2048 -drive format=raw,if=virtio,file=/homeusername/.talos/clusters/talos-default/pxe-1.disk -smp cpus=2 -cpu max -nographic -netdev tap,id=net0,ifname=tap0,script=no,downscript=no -device virtio-net-pci,netdev=net0,mac=36:f3:2f:c3:9f:06 -device virtio-rng-pci -no-reboot -boot order=cn,reboot-timeout=5000 -smbios type=1,uuid=ce12a0d0-29c8-490f-b935-f6073ab916a6 -machine q35,accel=kvm
sudo kill -s SIGTERM 1061663
sudo kill -s SIGTERM 1061663

​
Remove load balancer

Find the process of talosctl loadbalancer-launch:
ps -elf | grep 'talosctl loadbalancer-launch'
To remove the LB manually, execute:
sudo kill -s SIGTERM <PID>
Example output, where loadbalancer is running with PID 157609
ps -elf | grep '[t]alosctl loadbalancer-launch'
4 S root      157609    2835  0  80   0 - 184998 -     07:53 ?        00:00:07 talosctl loadbalancer-launch --loadbalancer-addr 10.5.0.1 --loadbalancer-upstreams 10.5.0.2
sudo kill -s SIGTERM 157609

​
Remove DHCP server

Find the process of talosctl dhcpd-launch:
ps -elf | grep 'talosctl dhcpd-launch'
To remove the LB manually, execute:
sudo kill -s SIGTERM <PID>
Example output, where loadbalancer is running with PID 157609
ps -elf | grep '[t]alosctl dhcpd-launch'
4 S root      157609    2835  0  80   0 - 184998 -     07:53 ?        00:00:07 talosctl dhcpd-launch --state-path /home/username/.talos/clusters/talos-default --addr 10.5.0.1 --interface talosbd9c32bc
sudo kill -s SIGTERM 157609

​
Remove network

This is more tricky part as if you have already deleted the state folder. If you didn’t then it is written in the state.yaml in the ~/.talos/clusters/<cluster-name> directory.
sudo cat ~/.talos/clusters/<cluster-name>/state.yaml | grep bridgename
bridgename: talos<uuid>
If you only had one cluster, then it will be the interface with name talos<uuid>
46: talos<uuid>: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether a6:72:f4:0a:d3:9c brd ff:ff:ff:ff:ff:ff
    inet 10.5.0.1/24 brd 10.5.0.255 scope global talos17c13299
      valid_lft forever preferred_lft forever
    inet6 fe80::a472:f4ff:fe0a:d39c/64 scope link
      valid_lft forever preferred_lft forever
To remove this interface:
sudo ip link del talos<uuid>

​
Remove state directory

To remove the state directory execute:
sudo rm -Rf /home/$USER/.talos/clusters/<cluster-name>

​
Troubleshooting

​
Logs

Inspect logs directory
sudo cat ~/.talos/clusters/<cluster-name>/*.log
Logs are saved under <cluster-name>-<role>-<node-id>.log For example in case of k8s cluster name:
ls -la ~/.talos/clusters/k8s | grep log
-rw-r--r--. 1 root root      69415 Apr 26 20:58 k8s-master-1.log
-rw-r--r--. 1 root root      68345 Apr 26 20:58 k8s-worker-1.log
-rw-r--r--. 1 root root      24621 Apr 26 20:59 lb.log
Inspect logs during the installation
tail -f ~/.talos/clusters/<cluster-name>/*.log

​
How it works

​
Linux

On Linux the KVM accelerator is utilized. Networking is created using the CNI plugins. For DHCP a custom server is used.

​
MacOS

On Macos the hvf accelerator (Apple Hypervisor Framework) is utilized. Networking is created by QEMU via the apple vmnet framework which handles everything but the DHCP for which a custom server is used instead.
