Talos implements concepts of resources and controllers to facilitate internal operations of the operating system. Talos resources and controllers are very similar to Kubernetes resources and controllers, but there are some differences. The content of this document is not required to operate Talos, but it is useful for troubleshooting. Starting with Talos 0.9, most of the Kubernetes control plane bootstrapping and operations is implemented via controllers and resources which allows Talos to be reactive to configuration changes, environment changes (e.g. time sync).

​
Resources

A resource captures a piece of system state. Each resource belongs to a “Type” which defines resource contents. Resource state can be split in two parts:
  • metadata: fixed set of fields describing resource - namespace, type, ID, etc.
  • spec: contents of the resource (depends on resource type).
Resource is uniquely identified by (namespace, type, id). Namespaces provide a way to avoid conflicts on duplicate resource IDs. At the moment of this writing, all resources are local to the node and stored in memory. So on every reboot resource state is rebuilt from scratch (the only exception is MachineConfig resource which reflects current machine config).

​
Controllers

Controllers run as independent lightweight threads in Talos. The goal of the controller is to reconcile the state based on inputs and eventually update outputs. A controller can have any number of resource types (and namespaces) as inputs. In other words, it watches specified resources for changes and reconciles when these changes occur. A controller might also have additional inputs: running reconcile on schedule, watching etcd keys, etc. A controller has a single output: a set of resources of fixed type in a fixed namespace. Only one controller can manage resource type in the namespace, so conflicts are avoided.

​
Querying Resources

Talos CLI tool talosctl provides read-only access to the resource API which includes getting specific resource, listing resources and watching for changes. Talos stores resources describing resource types and namespaces in meta namespace:
$ talosctl get resourcedefinitions
NODE         NAMESPACE   TYPE                 ID                                               VERSION
172.20.0.2   meta        ResourceDefinition   bootstrapstatuses.v1alpha1.talos.dev             1
172.20.0.2   meta        ResourceDefinition   etcdsecrets.secrets.talos.dev                    1
172.20.0.2   meta        ResourceDefinition   kubernetescontrolplaneconfigs.config.talos.dev   1
172.20.0.2   meta        ResourceDefinition   kubernetessecrets.secrets.talos.dev              1
172.20.0.2   meta        ResourceDefinition   machineconfigs.config.talos.dev                  1
172.20.0.2   meta        ResourceDefinition   machinetypes.config.talos.dev                    1
172.20.0.2   meta        ResourceDefinition   manifests.kubernetes.talos.dev                   1
172.20.0.2   meta        ResourceDefinition   manifeststatuses.kubernetes.talos.dev            1
172.20.0.2   meta        ResourceDefinition   namespaces.meta.cosi.dev                         1
172.20.0.2   meta        ResourceDefinition   resourcedefinitions.meta.cosi.dev                1
172.20.0.2   meta        ResourceDefinition   rootsecrets.secrets.talos.dev                    1
172.20.0.2   meta        ResourceDefinition   secretstatuses.kubernetes.talos.dev              1
172.20.0.2   meta        ResourceDefinition   services.v1alpha1.talos.dev                      1
172.20.0.2   meta        ResourceDefinition   staticpods.kubernetes.talos.dev                  1
172.20.0.2   meta        ResourceDefinition   staticpodstatuses.kubernetes.talos.dev           1
172.20.0.2   meta        ResourceDefinition   timestatuses.v1alpha1.talos.dev                  1

$ talosctl get namespaces
NODE         NAMESPACE   TYPE        ID             VERSION
172.20.0.2   meta        Namespace   config         1
172.20.0.2   meta        Namespace   controlplane   1
172.20.0.2   meta        Namespace   meta           1
172.20.0.2   meta        Namespace   runtime        1
172.20.0.2   meta        Namespace   secrets        1
Most of the time namespace flag (--namespace) can be omitted, as ResourceDefinition contains default namespace which is used if no namespace is given:
$ talosctl get resourcedefinitions resourcedefinitions.meta.cosi.dev -o yaml
node: 172.20.0.2
metadata:
    namespace: meta
    type: ResourceDefinitions.meta.cosi.dev
    id: resourcedefinitions.meta.cosi.dev
    version: 1
    phase: running
spec:
    type: ResourceDefinitions.meta.cosi.dev
    displayType: ResourceDefinition
    aliases:
        - resourcedefinitions
        - resourcedefinition
        - resourcedefinitions.meta
        - resourcedefinitions.meta.cosi
        - rd
        - rds
    printColumns: []
    defaultNamespace: meta
Resource definition also contains type aliases which can be used interchangeably with canonical resource name:
$ talosctl get ns config
NODE         NAMESPACE   TYPE        ID             VERSION
172.20.0.2   meta        Namespace   config         1

​
Output

Command talosctl get supports following output modes:
  • table (default) prints resource list as a table
  • yaml prints pretty formatted resources with details, including full metadata spec. This format carries most details from the backend resource (e.g. comments in MachineConfig resource)
  • json prints same information as yaml, some additional details (e.g. comments) might be lost. This format is useful for automated processing with tools like jq.

​
Watching Changes

If flag --watch is appended to the talosctl get command, the command switches to watch mode. If list of resources was requested, talosctl prints initial contents of the list and then appends resource information for every change:
$ talosctl get svc -w
NODE         *   NAMESPACE   TYPE      ID     VERSION   RUNNING   HEALTHY
172.20.0.2   +   runtime   Service   timed   2   true   true
172.20.0.2   +   runtime   Service   trustd   2   true   true
172.20.0.2   +   runtime   Service   udevd   2   true   true
172.20.0.2   -   runtime   Service   timed   2   true   true
172.20.0.2   +   runtime   Service   timed   1   true   false
172.20.0.2       runtime   Service   timed   2   true   true
Column * specifies event type:
  • + is created
  • - is deleted
  • is updated
In YAML/JSON output, field event is added to the resource representation to describe the event type.

​
Examples

Getting machine config:
$ talosctl get machineconfig v1alpha1 -o yaml
node: 172.20.0.2
metadata:
    namespace: config
    type: MachineConfigs.config.talos.dev
    id: v1alpha1
    version: 2
    phase: running
spec:
    version: v1alpha1 # Indicates the schema used to decode the contents.
    debug: false # Enable verbose logging to the console.
    persist: true # Indicates whether to pull the machine config upon every boot.
    # Provides machine specific configuration options.
...
Getting control plane static pod statuses:
$ talosctl get staticpodstatus
NODE         NAMESPACE      TYPE              ID                                                           VERSION   READY
172.20.0.2   controlplane   StaticPodStatus   kube-system/kube-apiserver-talos-default-controlplane-1            3         True
172.20.0.2   controlplane   StaticPodStatus   kube-system/kube-controller-manager-talos-default-controlplane-1   3         True
172.20.0.2   controlplane   StaticPodStatus   kube-system/kube-scheduler-talos-default-controlplane-1            4         True
Getting static pod definition for kube-apiserver:
$ talosctl get sp kube-apiserver -n 172.20.0.2 -o yaml
node: 172.20.0.2
metadata:
    namespace: controlplane
    type: StaticPods.kubernetes.talos.dev
    id: kube-apiserver
    version: 3
    phase: running
    finalizers:
        - k8s.StaticPodStatus("kube-apiserver")
spec:
    apiVersion: v1
    kind: Pod
    metadata:
        annotations:
            talos.dev/config-version: "1"
            talos.dev/secrets-version: "2"
...

​
Inspecting Controller Dependencies

Talos can report current dependencies between controllers and resources for debugging purposes:
$ talosctl inspect dependencies
digraph  {

  n1[label="config.K8sControlPlaneController",shape="box"];
  n3[label="config.MachineTypeController",shape="box"];
  n2[fillcolor="azure2",label="config:KubernetesControlPlaneConfigs.config.talos.dev",shape="note",style="filled"];
...

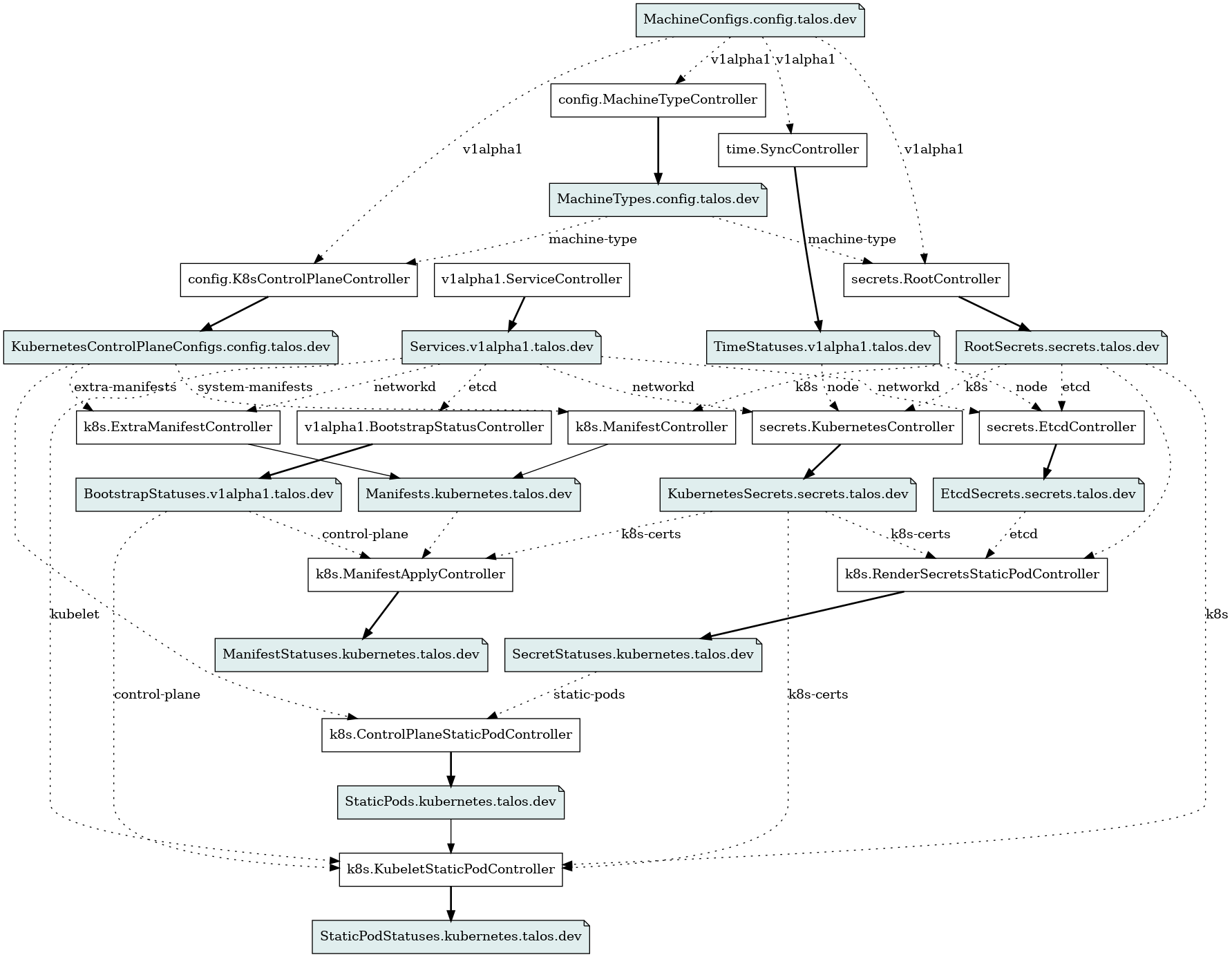

This outputs graph in graphviz format which can be rendered to PNG with command:
talosctl inspect dependencies | dot -T png > deps.png
Controller Dependencies Graph can be enhanced by replacing resource types with actual resource instances:
talosctl inspect dependencies --with-resources | dot -T png > deps.png
Controller Dependencies with Resources
