Machine labels can be useful for organizing and selecting machines in your Omni environment. For example, you might use them to distinguish between different environments (production, staging, development) or geographical locations (regions, zones). This helps various automation scenarios, such as integrating with your CI pipeline.
Choose label keys and values that are meaningful for your infrastructure organization.

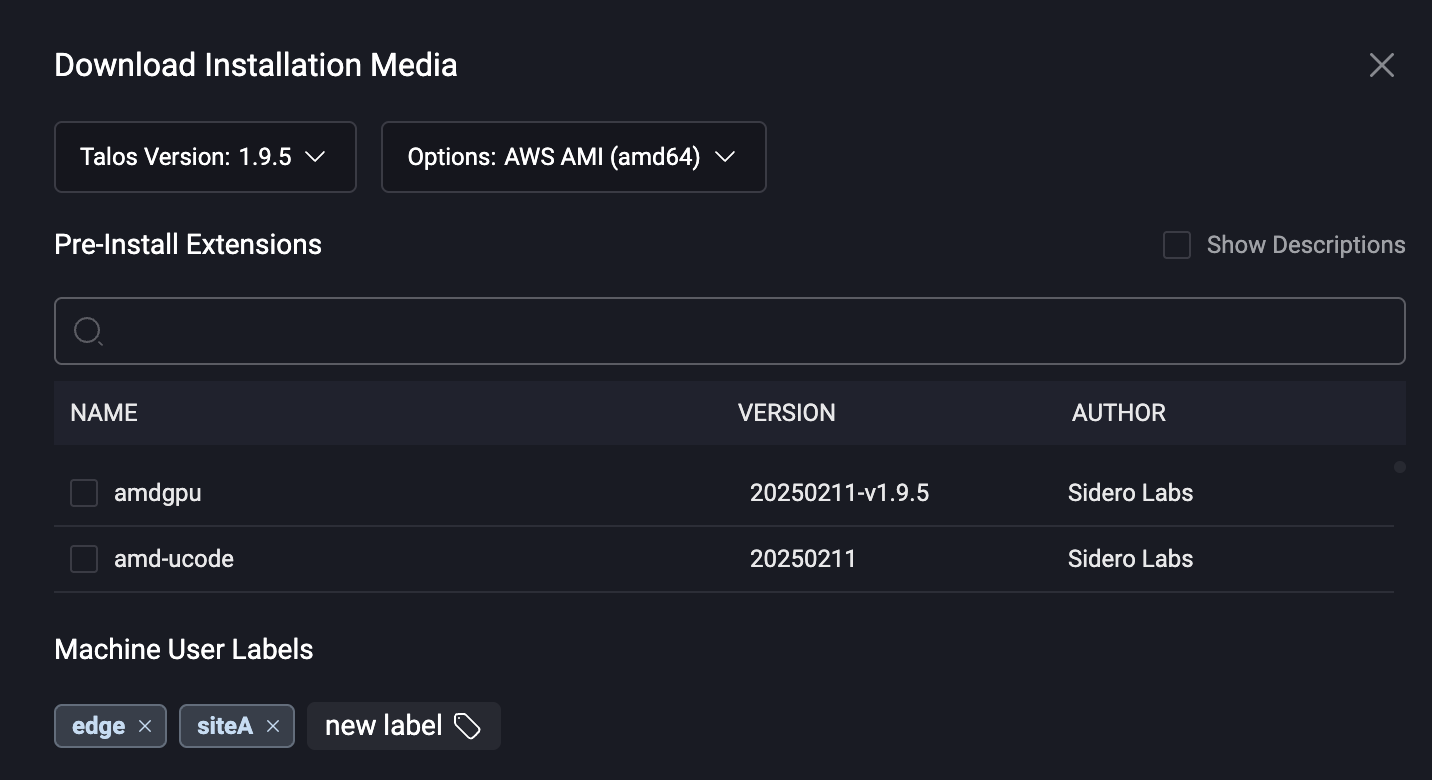

The simplest way to set machine labels is by using the “Download Installation Media” form from the homepage of Omni, which allows you set machine labels in the downloaded media (or the generated PXE endpoint.) This guide demonstrates how to set initial machine labels when generating boot media / URL using the omnictl CLI tool or using Image Factory directly. Both methods allow you to label your machines programmatically.

​
Using omnictl

When generating Talos installation media or a PXE boot URL using omnictl, you can set initial machine labels using the --initial-labels flag. This allows you to assign key-value pairs as labels to the machines that boot from that media or the PXE boot URL. Here’s the basic syntax for adding initial labels:
omnictl download <image-name> \
  --initial-labels <key1>=<value1>,<key2>=<value2> \
  [--pxe]
Let’s say you want to download an amd64 ISO image and set two labels: environment=production and region=us-west. Here’s how you would do that:
omnictl download iso --arch amd64 \
  --initial-labels environment=production,region=us-west
Running this command will prepare a schematic under the hood and submit it in a request to the Image Factory. The generated schematic will look like the following:
customization:
  extraKernelArgs:
    - siderolink.api=grpc://YOUR_INSTANCE.siderolink.omni.siderolabs.io?grpc_tunnel=true&jointoken=YOUR_JOIN_TOKEN
    - talos.events.sink=[fdae:41e4:649b:9303::1]:8090
    - talos.logging.kernel=tcp://[fdae:41e4:649b:9303::1]:8092
  meta:
    - key: 12
      value: |
        machineLabels:
            environment: production
            region: us-west
The schematic will also get a unique ID, such as d2f4229b6157ba7e1dba8c3b4de42263e4baa35111e960b6a18841332d0f2035. Here, you can see that the custom image contains the extra Kernel arguments for Talos to connect to your Omni instance on boot using Siderolink. It also contains the machine labels you have specified in a nested yaml in the meta section with key 12. Here, the key 12 is a Talos META key reserved for Omni for the initial machine labels.
These initial labels work not only for ISOs but for most installation media and for PXE boot URL. For example, to get a PXE boot URL for a Raspberry Pi board, you can runomnictl download rpi_generic --initial-labels environment=production,region=us-west --pxe.This command will print the PXE boot URL and exit.

​
Using Image Factory Directly

Instead of using your Omni instance to generate labeled boot media or PXE URLs, you can use the image factory directly. To do this, you need to craft an HTTP POST request with the schematic YAML in its body. First, you need to find the Kernel arguments for your Omni instance. You can do this by either:
  • clicking “Copy Kernel Parameters” on your Omni overview page, which will copy them to your clipboard
  • or by running omnictl get connectionparams -oyaml , which will print them under .spec.args field.
Note that this is a one-time operation - these kernel arguments will stay the same for all the machines you boot from the generated schematic ID. After retreiving the Kernel arguments, split them by white spaces, and put them into your request body. Your CURL command should look like the following:
curl -X POST https://factory.talos.dev/schematics \
  -H "Content-Type: application/yaml" \
  -d '
customization:
  extraKernelArgs:
    - siderolink.api=grpc://YOUR_INSTANCE.siderolink.omni.siderolabs.io?grpc_tunnel=true&jointoken=YOUR_JOIN_TOKEN
    - talos.events.sink=[fdae:41e4:649b:9303::1]:8090
    - talos.logging.kernel=tcp://[fdae:41e4:649b:9303::1]:8092
  meta:
    - key: 12
      value: |
        machineLabels:
            environment: production
            region: us-west
'
This command will produce output similar to:
{"id":"d2f4229b6157ba7e1dba8c3b4de42263e4baa35111e960b6a18841332d0f2035"}
Note that the printed schematic ID is the same as the one we got when we used omnictl.
Then you can use this ID in your PXE boot URL or download an installation media, for example:
curl -O https://factory.talos.dev/image/d2f4229b6157ba7e1dba8c3b4de42263e4baa35111e960b6a18841332d0f2035/v1.7.6/metal-amd64.iso
For more options, see the Image Factory reference.
Although Image Factory has a web UI, it is currently not possible to specify META values on the UI. Therefore, the initial machine labels cannot be specified on the UI at the moment. The version of the Image Factory UI built into Omni does support specifying initial machine labels.

​
Verifying Labels

After a machine boots from the labeled media/PXE URL and registers with Omni, you can verify the labels using the Omni web interface or the omnictl CLI tool. To check labels using omnictl, you can use either of these commands (replace <machine-id> with the actual machine ID):
omnictl get machinelabels -oyaml <machine-id>
or
omnictl get machinestatus -oyaml <machine-id>
These commands will display information about the labels on the machine.
