1. Log in to Keycloak.
  2. Create a realm.

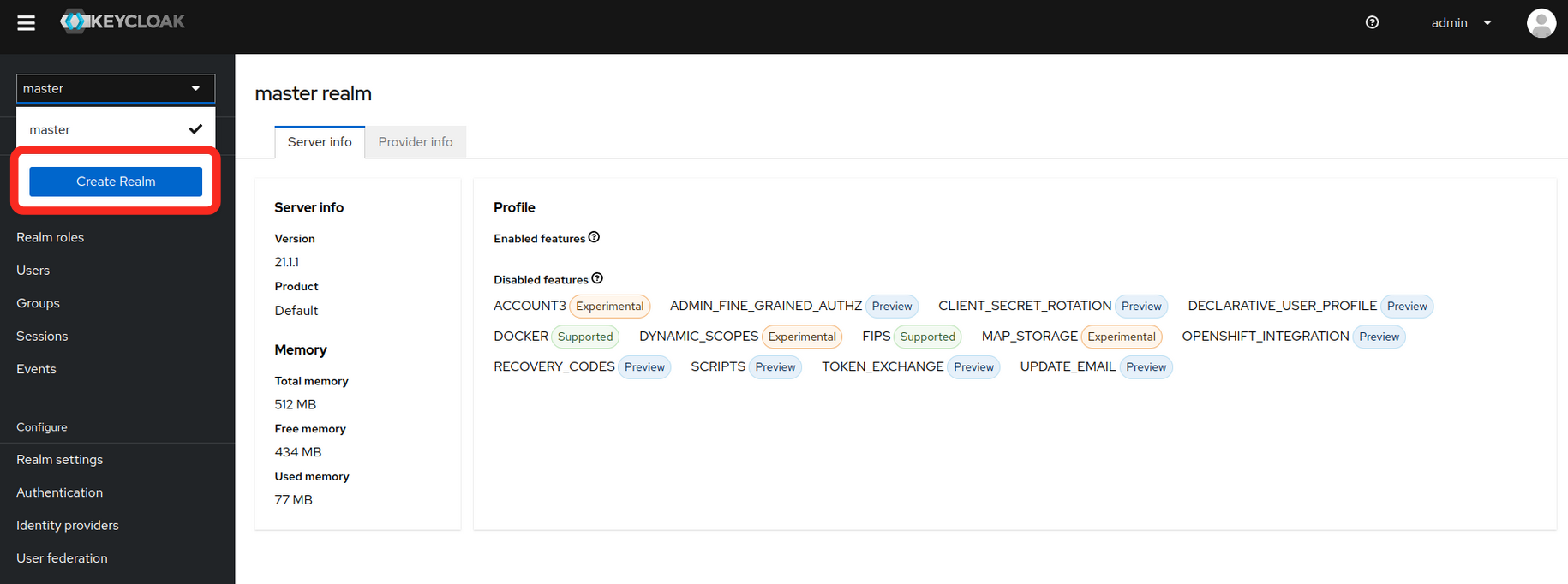

  • In the upper left corner of the page, select the dropdown where it says master

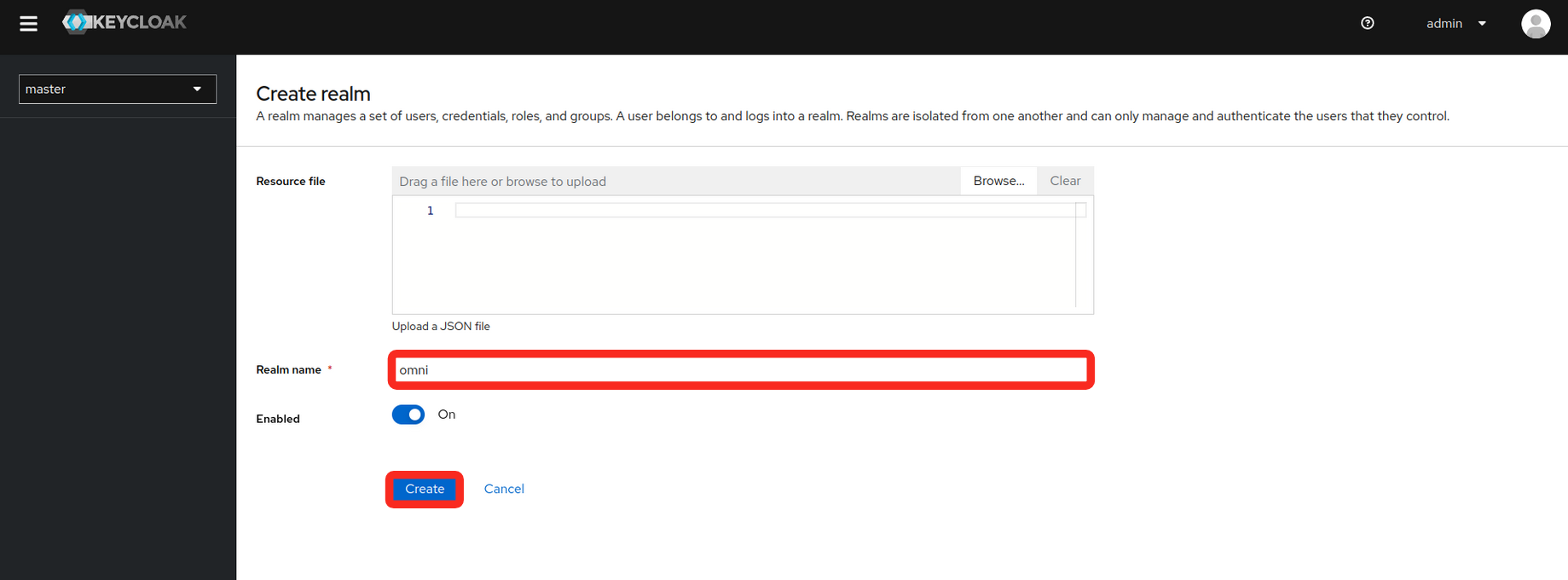

  • Fill in the realm name and select create
  1. Find the realm metadata.

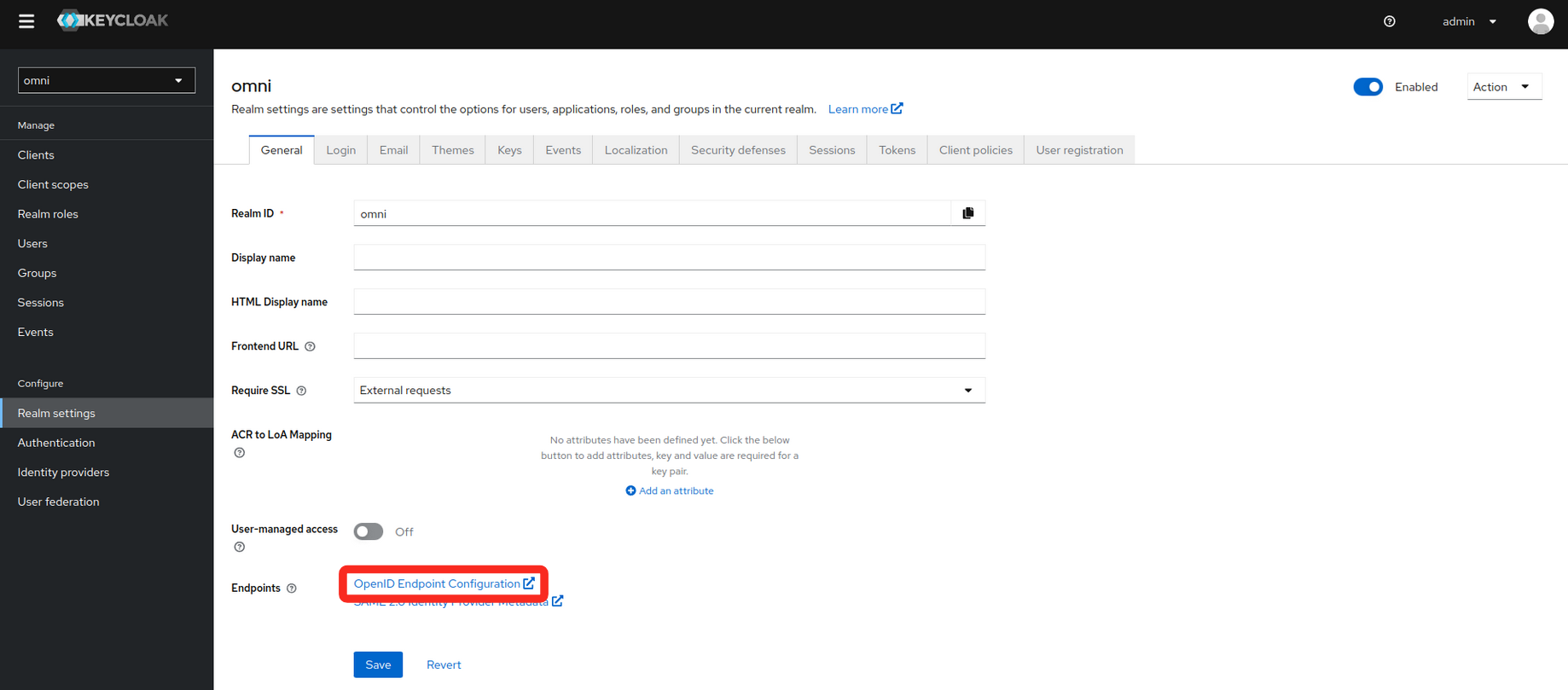

  • In the realm settings, there is a link to the metadata needed for SAML under Endpoints.
    • Copy the link or save the data to a file. It will be needed for the installation of Omni.

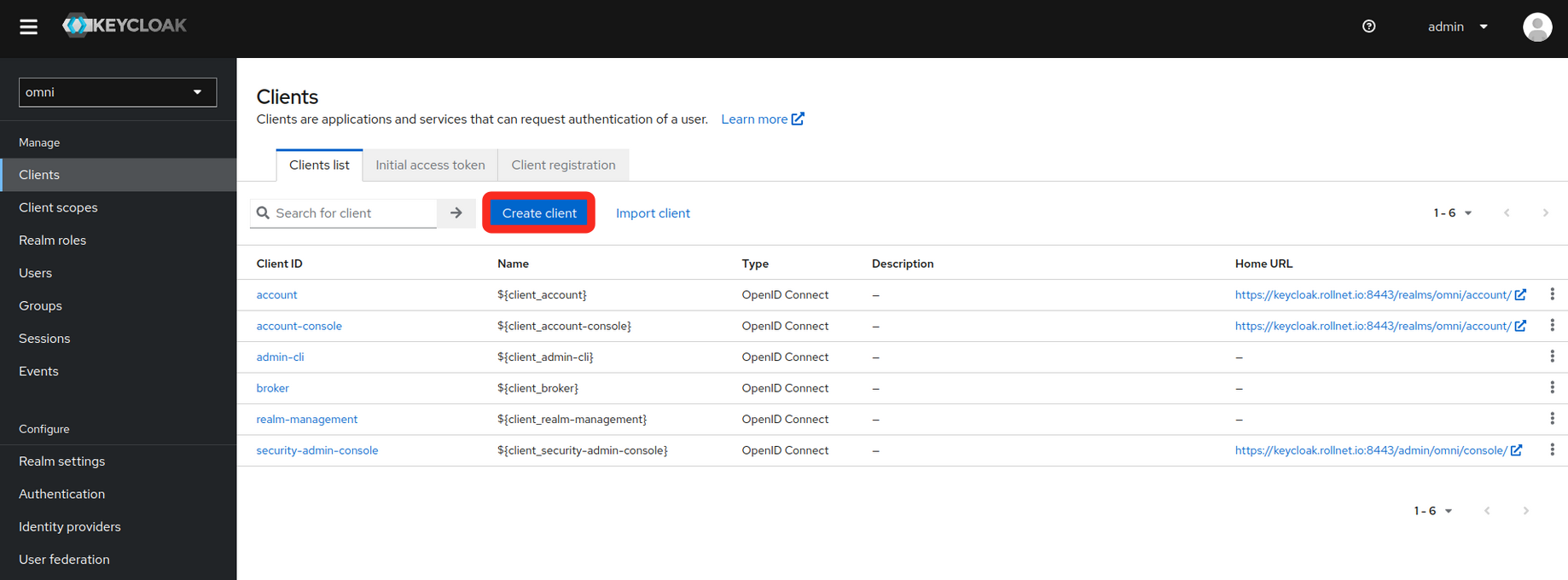

  1. Create a client
  • Select the Clients tab on the left

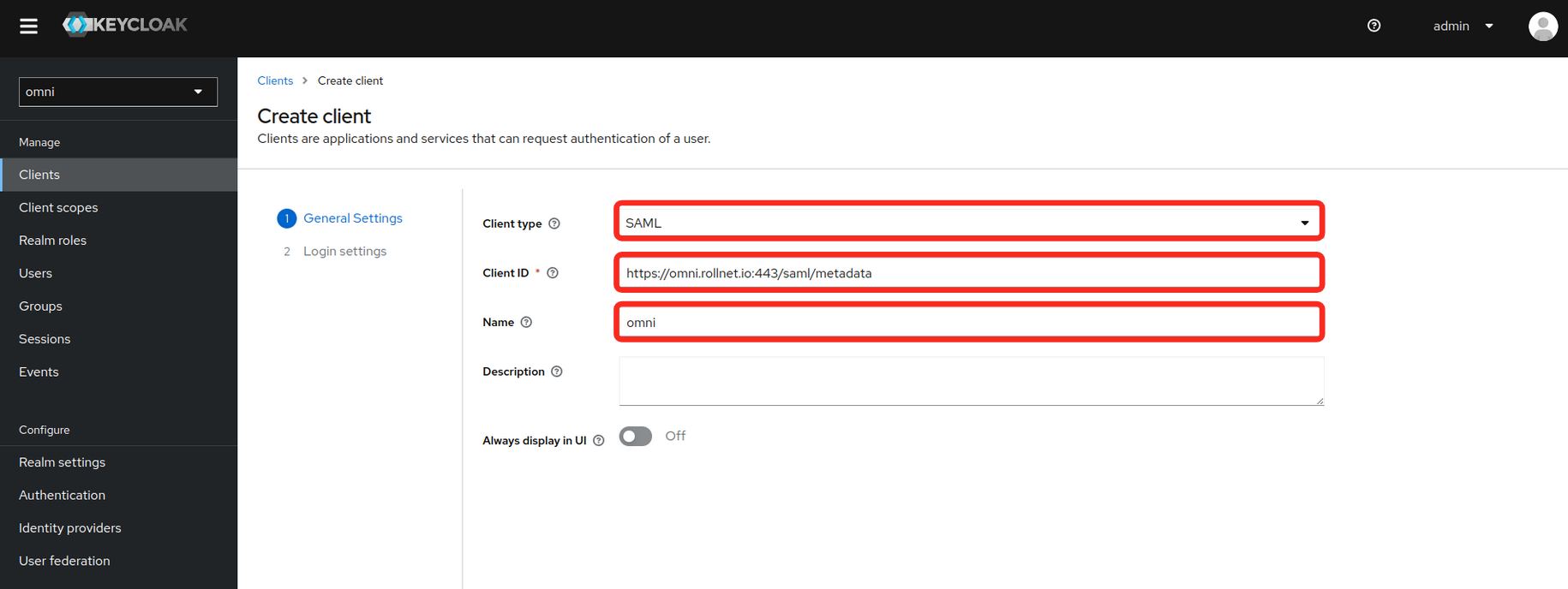

  • Fill in the General Settings as shown in the example below. Replace the hostname in the example with your own Omni hostname or IP.
    • Client type
    • Client ID
    • Name

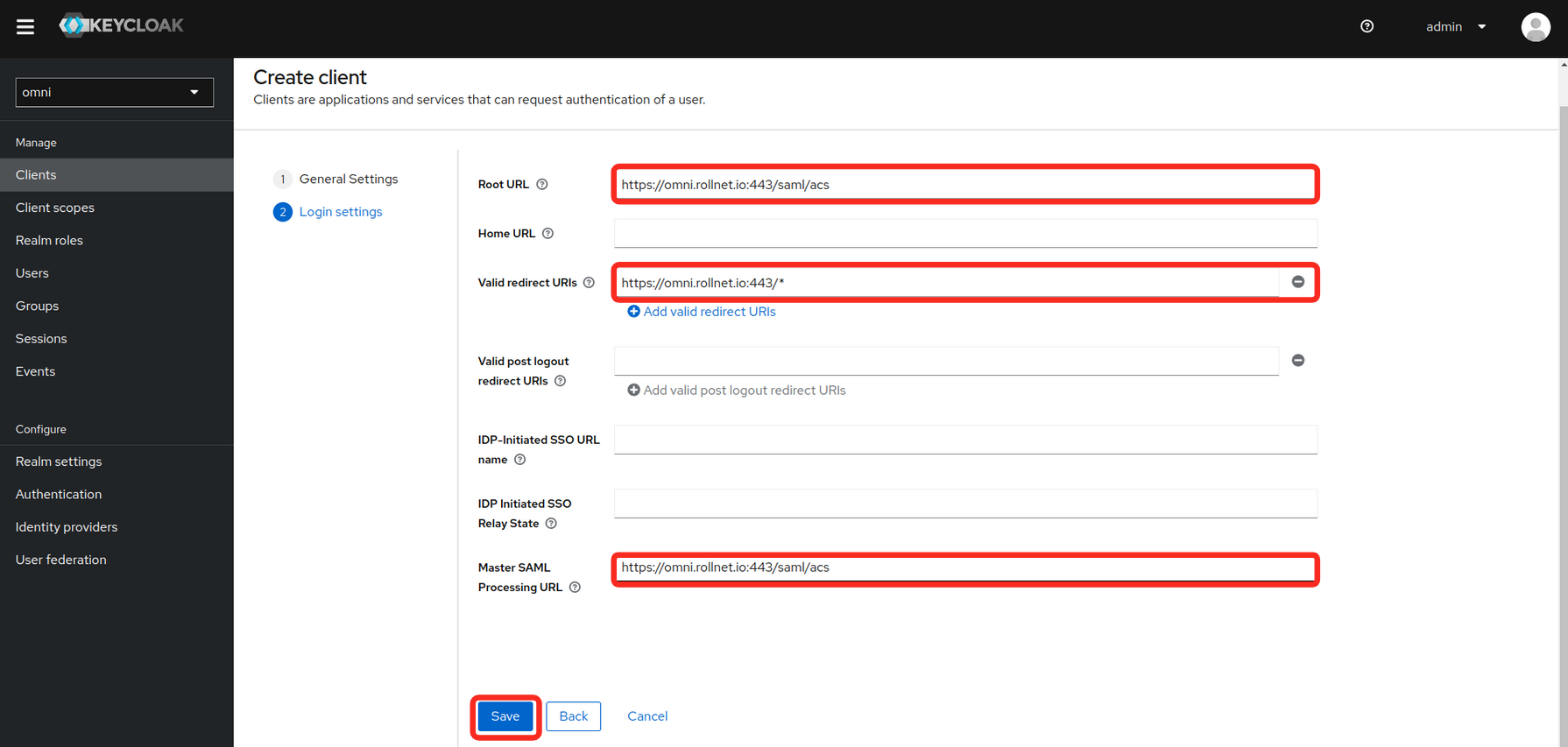

  • Fill in the Login settings as shown in the example below. Replace the hostname in the example with your own Omni hostname or IP.
    • Root URL
    • Valid redirect URIs
    • Master SAML Processing URL

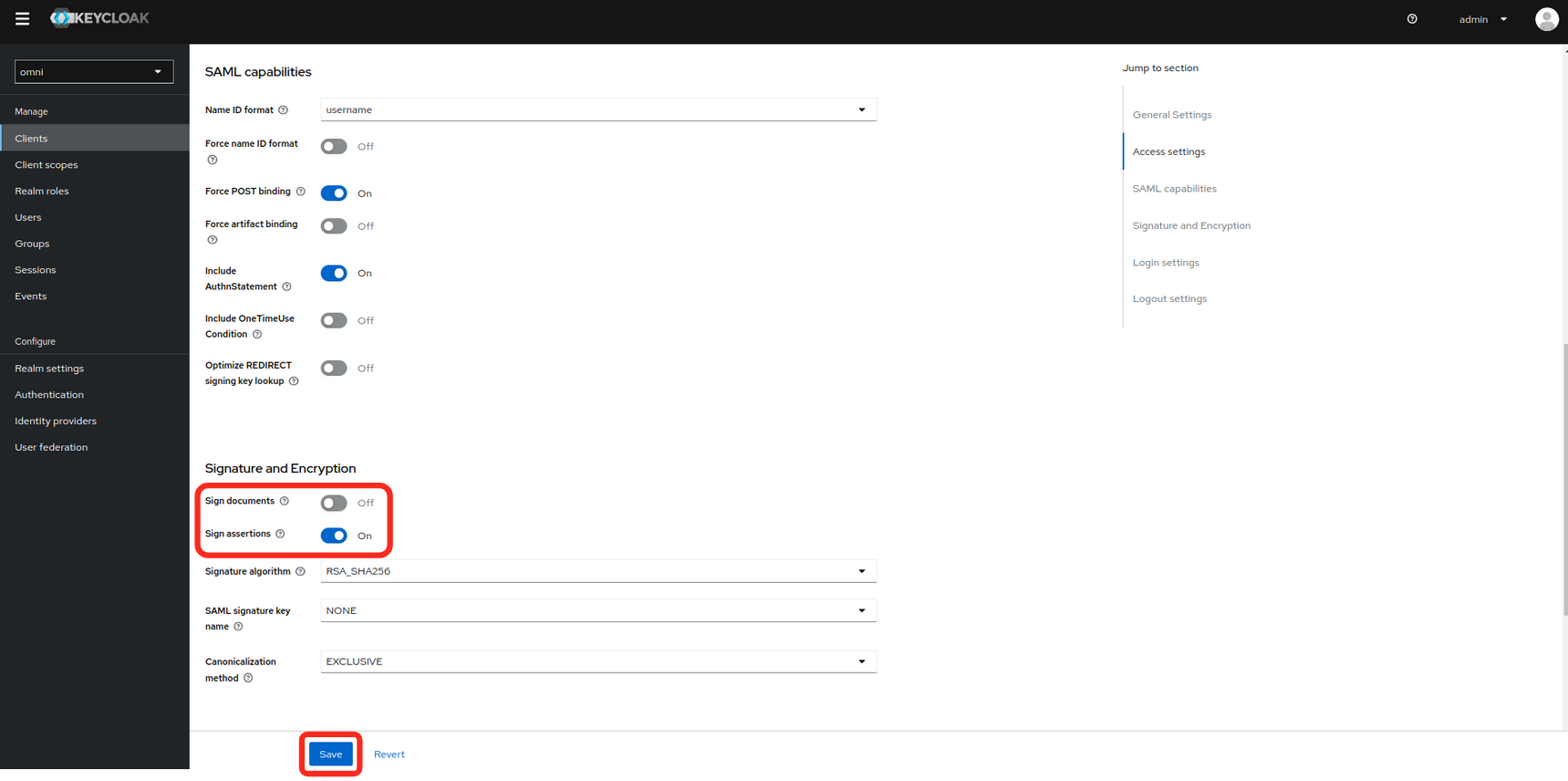

  • Modify the Signature and Encryption settings.
    • Sign documents: off
    • Sign assertions: on

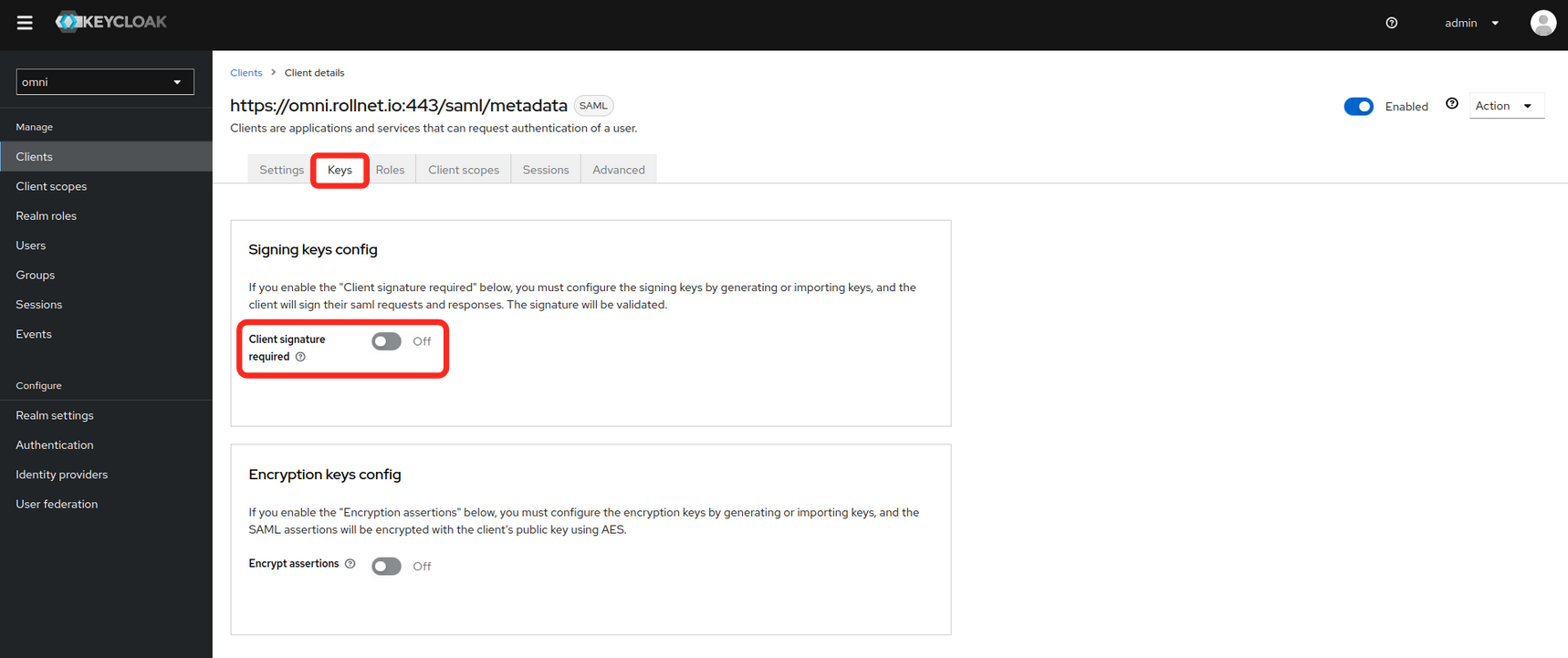

  • Set the Client signature required value to off.

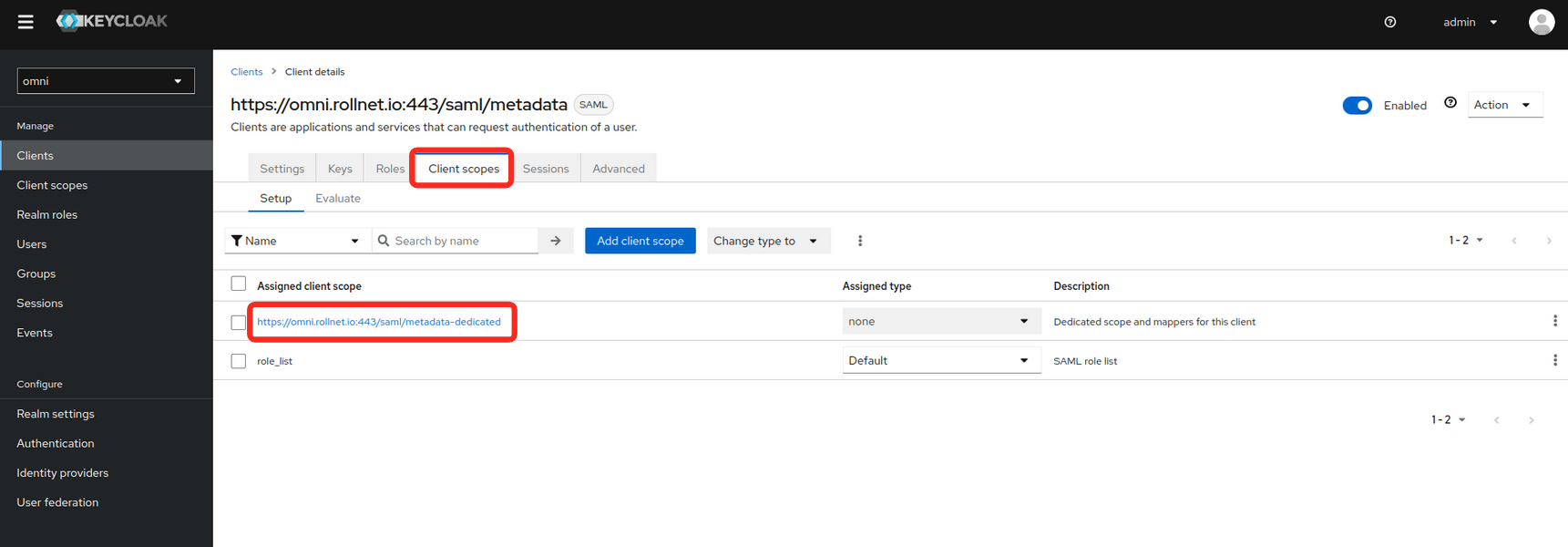

  • Modify Client Scopes

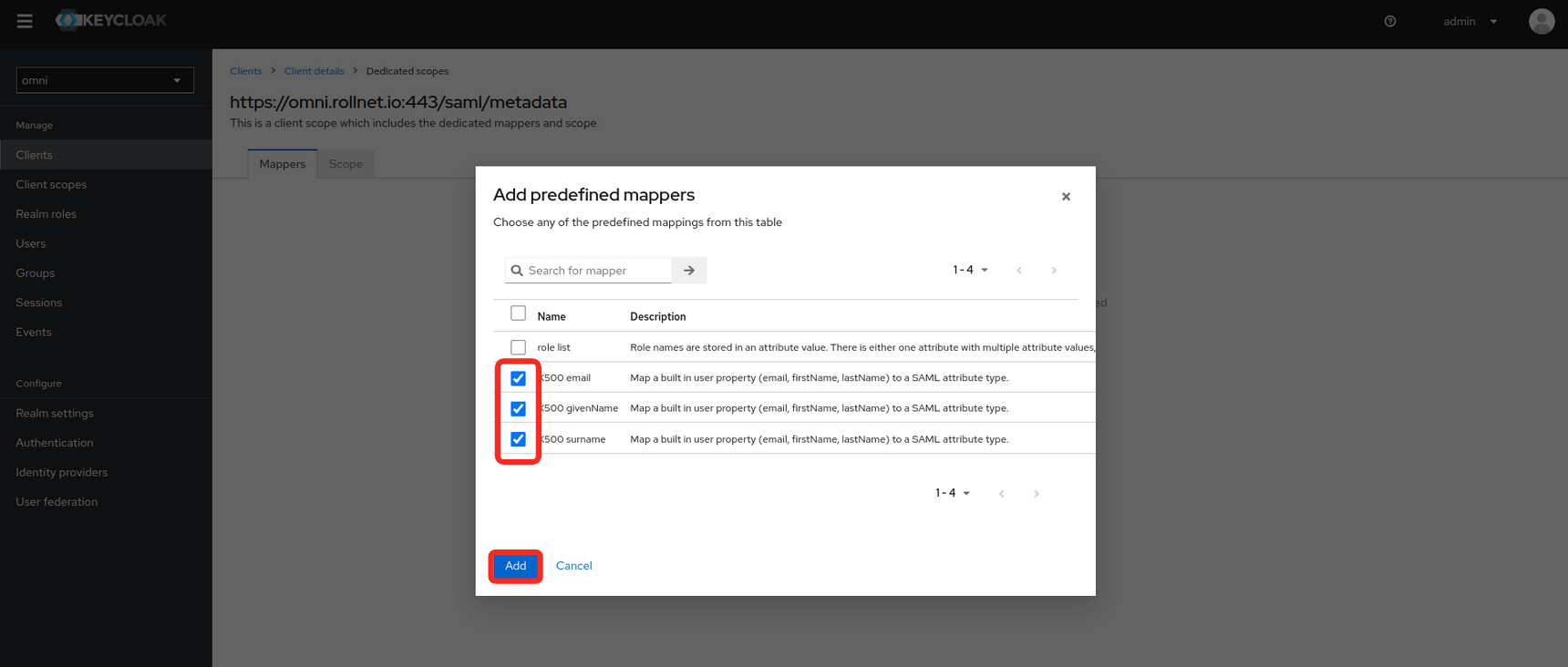

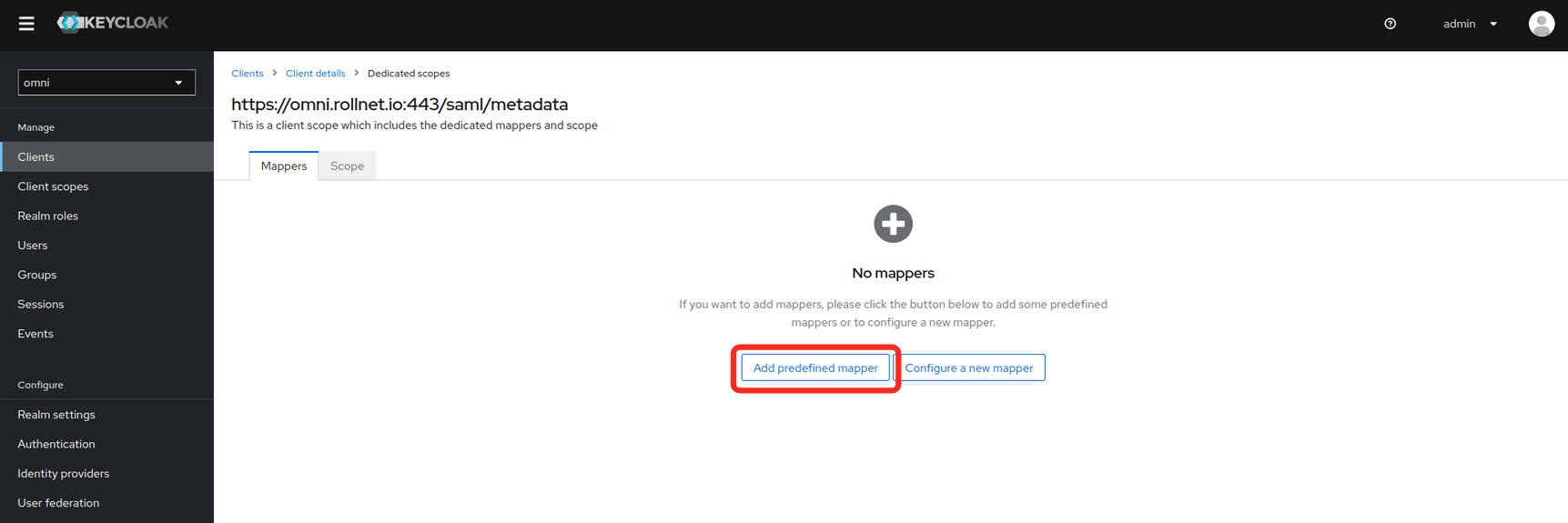

  • Select Add predefined mapper.
  • The following mappers need to be added because they will be used by Omni will use these attributes for assigning permissions.
    • X500 email
    • X500 givenName
    • X500 surname
  • Add a new user (optional)
    • If Keycloak is being used as an Identity Provider, users can be created here.
./images/configure-keycloak-for-omni-create-new-user.png

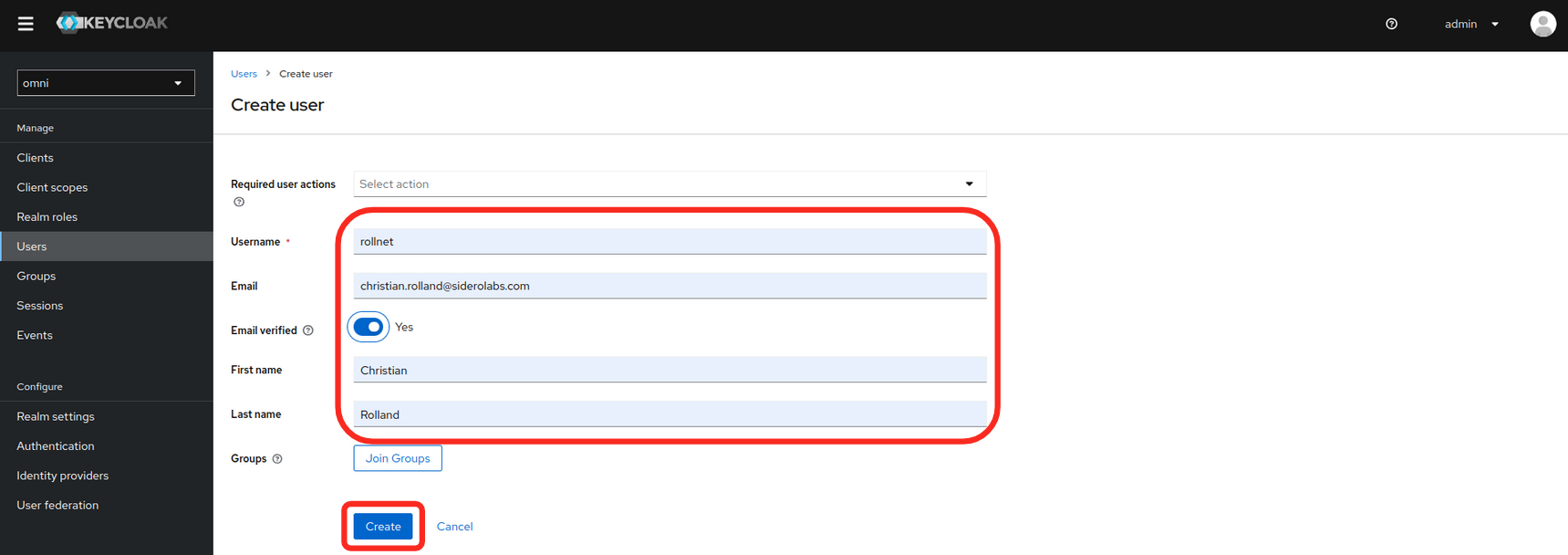

  • Enter the user information and set the Email verified to Yes

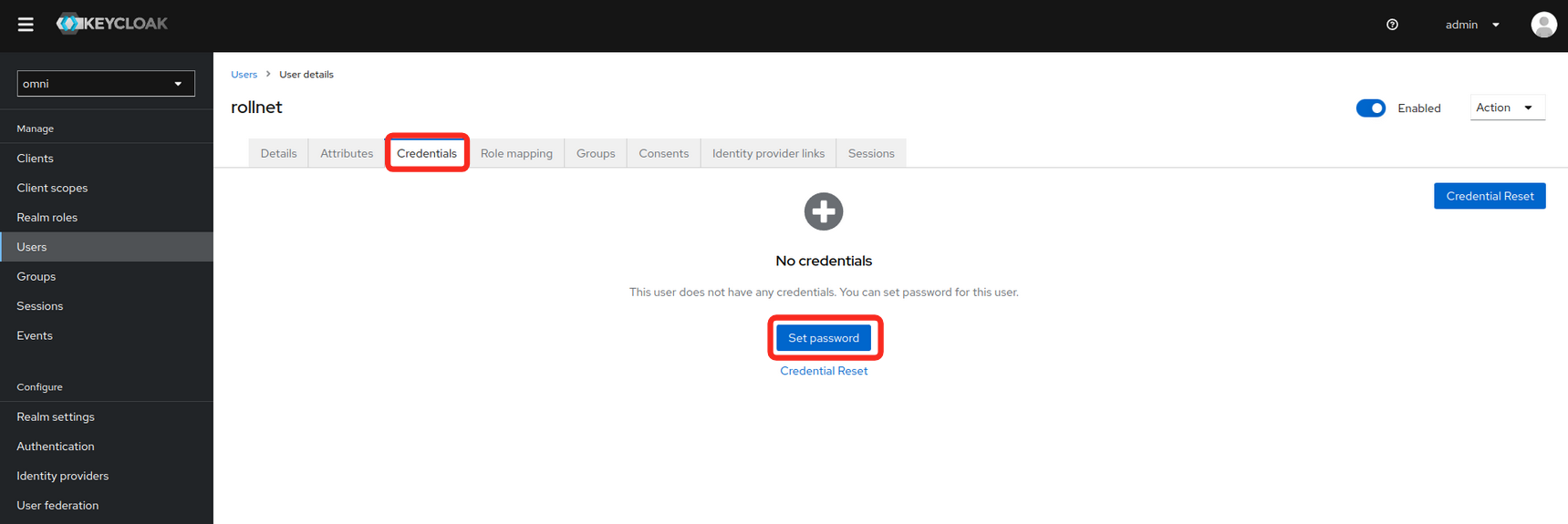

  • Set a password for the user.
