QEMU

In this guide we will create a Kubernetes cluster using QEMU.

Requirements

linux
macOS

QEMU
a kernel with
- KVM enabled (/dev/kvm must exist)
- CONFIG_NET_SCH_NETEM enabled
- CONFIG_NET_SCH_INGRESS enabled
at least CAP_SYS_ADMIN and CAP_NET_ADMIN capabilities
bridge, static and firewall CNI plugins from the standard CNI plugins, and tc-redirect-tap CNI plugin from the awslabs tc-redirect-tap installed to /opt/cni/bin (installed automatically by talosctl)
iptables
/var/run/netns directory should exist

Installation

How to get QEMU

Install QEMU with your operating system package manager.

linux
macOS

For example, on Ubuntu for x86:

apt install qemu-system-x86 qemu-kvm

Via brew:

brew install qemu

Install talosctl

You can download talosctl on MacOS and Linux via:

brew install siderolabs/tap/talosctl

For manual installation and other platforms please see the talosctl installation guide.

Create the cluster

For the first time, create root state directory as your user so that you can inspect the logs as non-root user:

mkdir -p ~/.talos/clusters

Create the cluster:

sudo --preserve-env=HOME talosctl cluster create qemu

On Linux, before the first cluster is created, talosctl will download the CNI bundle for the VM provisioning and install it to ~/.talos/cni directory. Once the above finishes successfully, your talosconfig (~/.talos/config) will be configured to point to the new cluster, and kubeconfig will be downloaded and merged into default kubectl config location (~/.kube/config).

Presets

The talosctl cluster create qemu command has various presets available via the --presets flag to modify behavior. See reference documentation for more details.

Image factory schematic

Optionally a custom Image Factory schematic ID can be provided via the --schematic-id flag.

Omni

The omni-api-endpoint flag configures nodes to connect to an Omni instance once booted. Using SideroLink, the local QEMU nodes can communicate with Omni as long as the endpoint is reachable. This enables connections to a local Omni instance, a cloud-hosted Omni instance, or a Sidero SaaS Omni instance.

Using the cluster

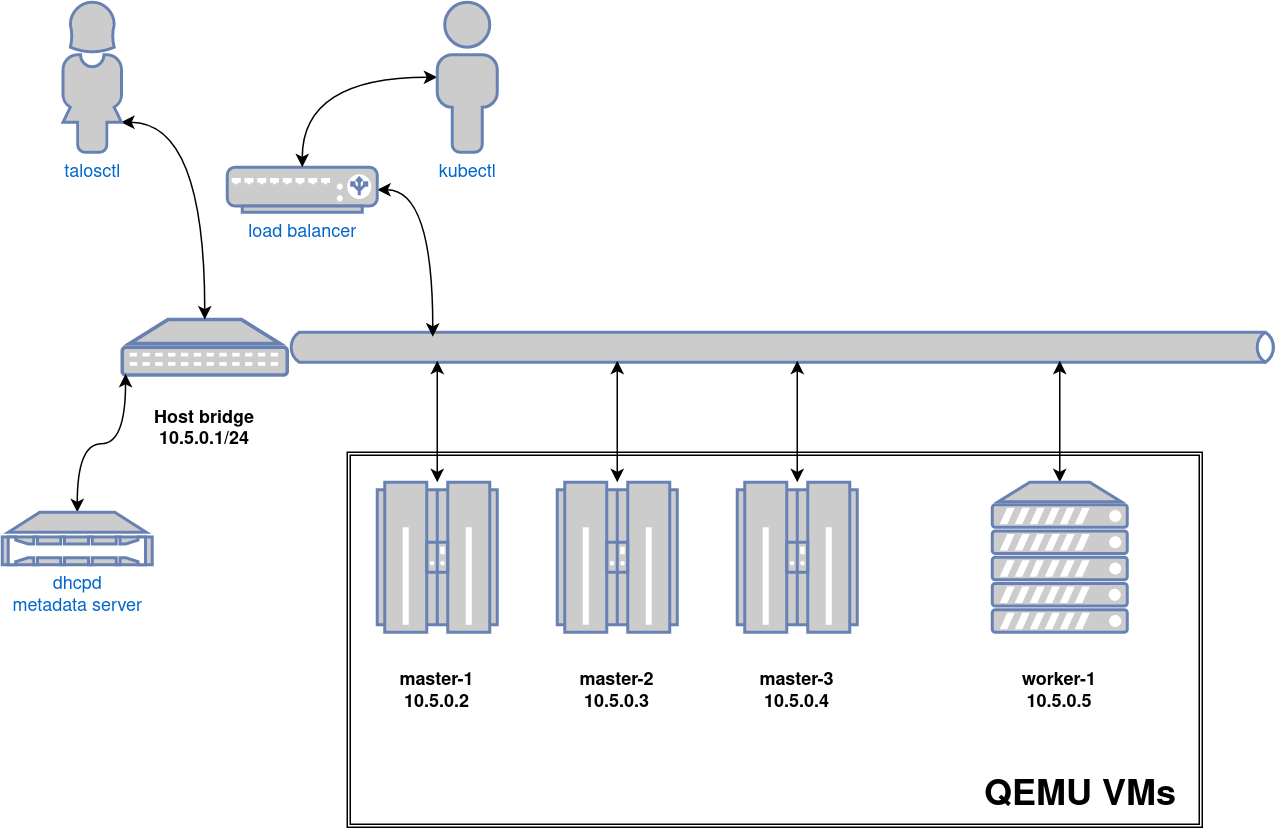

Once the cluster is available, you can make use of talosctl and kubectl to interact with the cluster. For example, to view current running containers, run talosctl -n 10.5.0.2 containers for a list of containers in the system namespace, or talosctl -n 10.5.0.2 containers -k for the k8s.io namespace. To view the logs of a container, use talosctl -n 10.5.0.2 logs <container> or talosctl -n 10.5.0.2 logs -k <container>. A bridge interface will be created, and assigned the default IP 10.5.0.1. Each node will be directly accessible on the subnet specified at cluster creation time. A loadbalancer runs on 10.5.0.1 by default, which handles loadbalancing for the Kubernetes APIs. You can see a summary of the cluster state by running:

$ talosctl cluster show --provisioner qemu
PROVISIONER       qemu
NAME              talos-default
NETWORK NAME      talos-default
NETWORK CIDR      10.5.0.0/24
NETWORK GATEWAY   10.5.0.1
NETWORK MTU       1500

NODES:

NAME                           TYPE           IP         CPU    RAM      DISK
talos-default-controlplane-1   ControlPlane   10.5.0.2   1.00   1.6 GB   4.3 GB
talos-default-controlplane-2   ControlPlane   10.5.0.3   1.00   1.6 GB   4.3 GB
talos-default-controlplane-3   ControlPlane   10.5.0.4   1.00   1.6 GB   4.3 GB
talos-default-worker-1         Worker         10.5.0.5   1.00   1.6 GB   4.3 GB

Cleaning up

To cleanup, run:

sudo --preserve-env=HOME talosctl cluster destroy --provisioner qemu

Note: In that case that the host machine is rebooted before destroying the cluster, you may need to manually remove ~/.talos/clusters/talos-default.

Manual clean up

The talosctl cluster destroy command depends heavily on the clusters state directory. It contains all related information of the cluster. The PIDs and network associated with the cluster nodes. If you happened to have deleted the state folder by mistake or you would like to cleanup the environment, here are the steps how to do it manually:

Remove VM launchers

Find the process of talosctl qemu-launch:

ps -elf | grep 'talosctl qemu-launch'

To remove the VMs manually, execute:

sudo kill -s SIGTERM <PID>

Example output, where VMs are running with PIDs 157615 and 157617

ps -elf | grep '[t]alosctl qemu-launch'
0 S root      157615    2835  0  80   0 - 184934 -     07:53 ?        00:00:00 talosctl qemu-launch
0 S root      157617    2835  0  80   0 - 185062 -     07:53 ?        00:00:00 talosctl qemu-launch
sudo kill -s SIGTERM 157615
sudo kill -s SIGTERM 157617

Stopping VMs

Find the process of qemu-system:

ps -elf | grep 'qemu-system'

To stop the VMs manually, execute:

sudo kill -s SIGTERM <PID>

Example output, where VMs are running with PIDs 158065 and 158216

ps -elf | grep qemu-system
2 S root     1061663 1061168 26  80   0 - 1786238 -    14:05 ?        01:53:56 qemu-system-x86_64 -m 2048 -drive format=raw,if=virtio,file=/home/username/.talos/clusters/talos-default/bootstrap-master.disk -smp cpus=2 -cpu max -nographic -netdev tap,id=net0,ifname=tap0,script=no,downscript=no -device virtio-net-pci,netdev=net0,mac=1e:86:c6:b4:7c:c4 -device virtio-rng-pci -no-reboot -boot order=cn,reboot-timeout=5000 -smbios type=1,uuid=7ec0a73c-826e-4eeb-afd1-39ff9f9160ca -machine q35,accel=kvm
2 S root     1061663 1061170 67  80   0 - 621014 -     21:23 ?        00:00:07 qemu-system-x86_64 -m 2048 -drive format=raw,if=virtio,file=/homeusername/.talos/clusters/talos-default/pxe-1.disk -smp cpus=2 -cpu max -nographic -netdev tap,id=net0,ifname=tap0,script=no,downscript=no -device virtio-net-pci,netdev=net0,mac=36:f3:2f:c3:9f:06 -device virtio-rng-pci -no-reboot -boot order=cn,reboot-timeout=5000 -smbios type=1,uuid=ce12a0d0-29c8-490f-b935-f6073ab916a6 -machine q35,accel=kvm
sudo kill -s SIGTERM 1061663
sudo kill -s SIGTERM 1061663

Remove load balancer

Find the process of talosctl loadbalancer-launch:

ps -elf | grep 'talosctl loadbalancer-launch'

To remove the LB manually, execute:

sudo kill -s SIGTERM <PID>

Example output, where loadbalancer is running with PID 157609

ps -elf | grep '[t]alosctl loadbalancer-launch'
4 S root      157609    2835  0  80   0 - 184998 -     07:53 ?        00:00:07 talosctl loadbalancer-launch --loadbalancer-addr 10.5.0.1 --loadbalancer-upstreams 10.5.0.2
sudo kill -s SIGTERM 157609

Remove DHCP server

Find the process of talosctl dhcpd-launch:

ps -elf | grep 'talosctl dhcpd-launch'

To remove the LB manually, execute:

sudo kill -s SIGTERM <PID>

Example output, where loadbalancer is running with PID 157609

ps -elf | grep '[t]alosctl dhcpd-launch'
4 S root      157609    2835  0  80   0 - 184998 -     07:53 ?        00:00:07 talosctl dhcpd-launch --state-path /home/username/.talos/clusters/talos-default --addr 10.5.0.1 --interface talosbd9c32bc
sudo kill -s SIGTERM 157609

Remove network

linux
macOS

This is more tricky part as if you have already deleted the state folder. If you didn’t then it is written in the state.yaml in the ~/.talos/clusters/<cluster-name> directory.

sudo cat ~/.talos/clusters/<cluster-name>/state.yaml | grep bridgename
bridgename: talos<uuid>

If you only had one cluster, then it will be the interface with name talos<uuid>

46: talos<uuid>: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether a6:72:f4:0a:d3:9c brd ff:ff:ff:ff:ff:ff
    inet 10.5.0.1/24 brd 10.5.0.255 scope global talos17c13299
      valid_lft forever preferred_lft forever
    inet6 fe80::a472:f4ff:fe0a:d39c/64 scope link
      valid_lft forever preferred_lft forever

To remove this interface:

sudo ip link del talos<uuid>

Remove state directory

To remove the state directory execute:

sudo rm -Rf /home/$USER/.talos/clusters/<cluster-name>

Troubleshooting

Logs

Inspect logs directory

sudo cat ~/.talos/clusters/<cluster-name>/*.log

Logs are saved under <cluster-name>-<role>-<node-id>.log For example in case of k8s cluster name:

ls -la ~/.talos/clusters/k8s | grep log
-rw-r--r--. 1 root root      69415 Apr 26 20:58 k8s-master-1.log
-rw-r--r--. 1 root root      68345 Apr 26 20:58 k8s-worker-1.log
-rw-r--r--. 1 root root      24621 Apr 26 20:59 lb.log

Inspect logs during the installation

tail -f ~/.talos/clusters/<cluster-name>/*.log

How it works

Linux

On Linux the KVM accelerator is utilized. Networking is created using the CNI plugins. For DHCP a custom server is used.

MacOS

On Macos the hvf accelerator (Apple Hypervisor Framework) is utilized. Networking is created by QEMU via the apple vmnet framework which handles everything but the DHCP for which a custom server is used instead.
